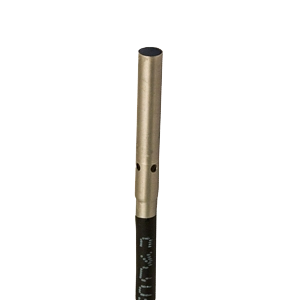

MINIATURE CYLNDRICAL  -  Ø3
AA1

Miniaturized inductive sensors, diameter ø3 mm. Where small spaces required small dimensions.

• Shielded models with sensing distance: 0,6mm / 1mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• IP67 protection degree
• Totally protected against electrical damages
• Stainless steel AISI303 housing

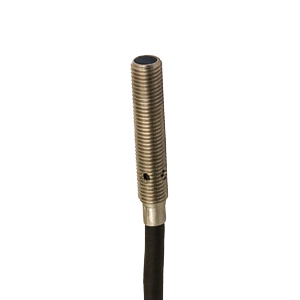

MINIATURE CYLNDRICAL  -  M4
AB1

Miniaturized inductive sensors diameter M4. Where small spaces required small dimensions.

• Shielded models with sensing distance: 0.6mm / 1 mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• IP67 protection degree
• Totally protected against electrical damages
• Stainless steel AISI303 housing

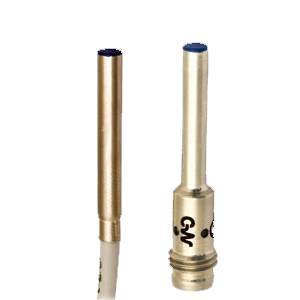

MINIATURE  -  Ø4
AC1

Miniaturized inductive sensors diameter ø4 mm Where small spaces required small dimensions.

• Shielded models with sensing distance: 0,8mm / 1,5mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• IP67 protection degree
• Totally protected against electrical damages
• Stainless steel AISI303 housing

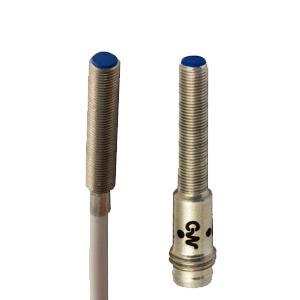

MINIATURE CYLNDRICAL  -  M5
AD1

Miniaturized inductive sensors diameter M5. Where small spaces required small dimensions.

• Shielded models with sensing distance: 0.8mm / 1.5mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• Totally protected against electrical damages
• Cable and M8 plug output
• Stainless steel AISI303 housing

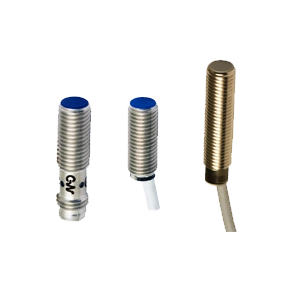

MINIATURE CYLNDRICAL  -  M8
AES

Miniaturized inductive sensors diameter M8. Where small spaces required small dimensions.

• Miniaturized dimensions: M8 x 20 mm (cable) / 30 mm (plug) lenght
• Shielded models with sensing distance: 1.5mm ./ 2mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• Totally protected against electrical damages
• Cable and plug M8 output
• Stainless steel AISI303 housing

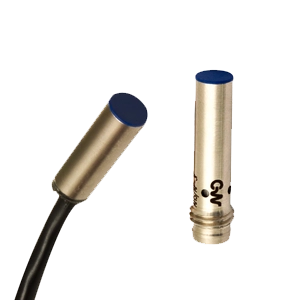

MINIATURE CYLNDRICAL  -  Ø 6.5
AHS

Miniaturized inductive sensors, diameter Ø 6.5 mm. Where small spaces required small dimensions.

• Miniaturized dimensions: Ø 6.5 x 20 mm (cable) / 30 mm (plug) lenght
• Shielded models with sensing distance 1.5 mm / 2mm
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• Totally protected against electrical damages
• Cable and plug M8 output
• Stainless steel AISI303 housing

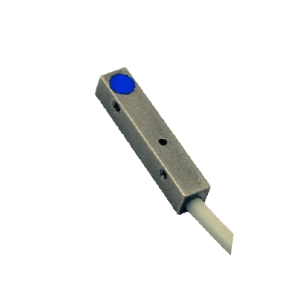

MINIATURE CUBIC  -  5 X 5
IL5

Cubic inductive sensors: 5 x 5 mm

• 5 x 5 mm with sensing distance of 0.8 mm and 1.5 mm
• Shielded models with sensing distance 0.8 mm / 1.5 mm
• ASIC inside: high reliability and repeatibility
• Stainless steel AISI303 housing

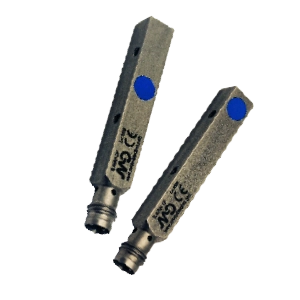

MINIATURE CUBIC  -  8 X 8
IL8/IL9

Cubic inductive sensors: 8 x 8 mm

• 8 x 8 mm with sensing distance of 1.5 mm, 2 mm and 2.5 mm
• Shielded models with sensing distance: 1.5 mm / 2mm / 2.5 mm
• ASIC inside: high reliability and repeatibility
• Stainless steel AISI303 housing

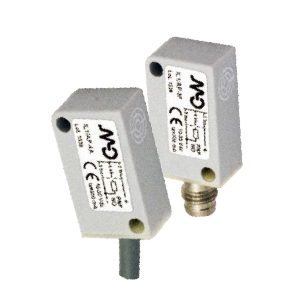

MINIATURE CUBIC  -  10 X 28 X 16
IL1

Cubic inductive sensors: 10 x 28 x 16 mm.

• Compact dimensions: 10 x 28 x 16 mm
• Supply voltage 10...30 Vdc, output current 300 mA
• LED status indicator
• IP 67 housing protection
• Complete protection against electrical damages

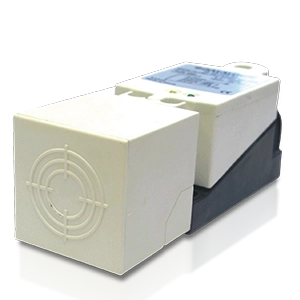

CUBIC  -  40 X 40
SQUARE

40 x 40 mm. Versatile and flexible for various applications in the machinery thanks to the connector rotable in any direction.

• 40 x 40 x 118 mm: terminal block, 15 mm (shielded), 30 mm (unshielded)
• 40 x 40 x 66 mm: M12 plug, 15 mm (shielded)
• PNP or NPN, NO+NC
• AC/DC, NO or NC
• Models with analogue outputs 0-20 mA: 7…20 mm (shielded)

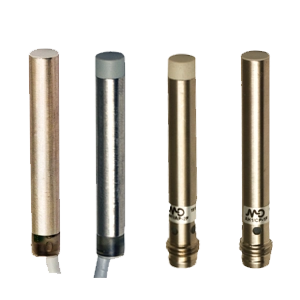

STANDARD  -  Ø6.5
AH

Diameter ø 6,5 mm. Reliable detection of any metal part.

• Standard and short body housing
• Stainless steel AISI303 housing
• LED status indicator 360° visible
• IP 67 protection degree
• ATEX models, cat. 3, available on request
• Complete protection against electrical damages
• Standard and long distance models

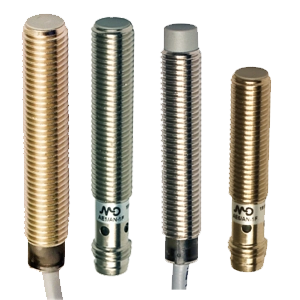

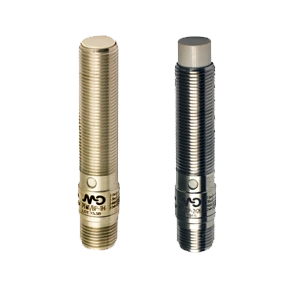

STANDARD  -  M8
AE

Diameter M8. Reliable detection of any metal part.

• Standard and short body housing
• Metal housing
• LED status indicator 360° visible
• IP 67 housing protection
• ATEX models, cat. 3, available on request
• Complete protection against electrical damages
• Standard and long distance models
• Standard and short body housing

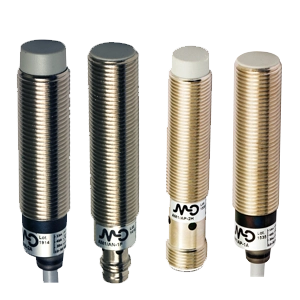

STANDARD  -  M12
AM

M12. Reliable detection of any metal part.

• Wide range of models: standard, short body, long distance
• Output: cable, M12 and M8 plug cable exit
• Models with 2, 3 wires
• ATEX models, cat. 3, available on request
• Models with complementary output (NO+NC)
• Complete protection against electrical damages

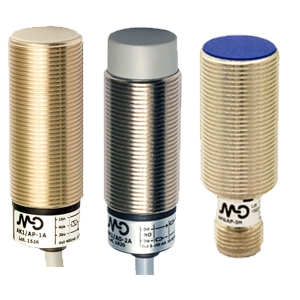

STANDARD  -  M18
AK

M18. Reliable detection of any metal part.

• Wide range of models: standard, long distance
• Output: cable, M12 and plug cable exit
• Models with 2, 3, and 4 wires
• ATEX models, cat. 3, available on request
• Models with complementary output (NO+NC)
• Complete protection against electrical damages

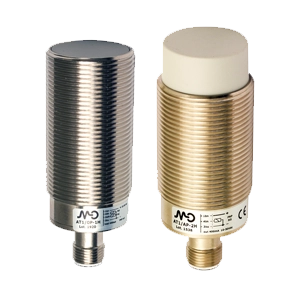

STANDARD  -  M30
AT

M30. Reliable detection of any metal part.

• Wide range of models: standard, long distance
• Output: cable, M12 and plug cable exit
• Models with 2, 3, and 4 wires
• ATEX models, cat. 3, available on request
• Models with complementary output (NO + NC)
• Complete protection against electrical damages

Ø6.5 - M30 - STANDARD
INDUCTIVE AC

From diameter ø 6,5 mm to M30. Reliable detection of any metal part.

• Wide choice of sizes M12, M18 and M30
• Shielded and unshielded models
• Supply voltage: 20…253 Vac

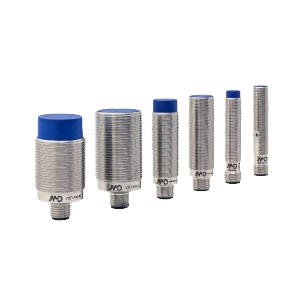

MULTIVOLTAGE  -  M8 - M30
V3

AC sensors with M12, M18 and M30 housing (V*2 series). AC/DC sensors with M8, M12, M18 and M30 housing (V3 series).

• Shielded and unshielded models
• Supply voltage: 20…250 Vac/dc
• Enhanced distance
• Protected against short circuits in AC and DC!

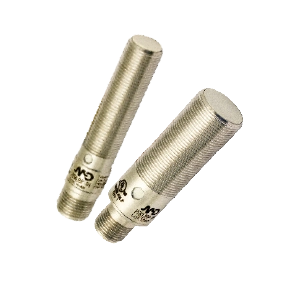

HIGH PERFORMANCE  -  M12-M30
FM

From M8 to M30 housing. AISI316L full metal body

• Enhanced distance
• High resistance to impact on the sensors' head (up to IK10 for M30 models)
• IP69K protection degree

M12 - HIGH-PERFORMANCE
PFM

Designed for washdown applications

• AISI 316L (DIN 1.4404) stainless steel housing
• LED status indicator
• IP67 – IP68 – IP69K protection degree
• ATEX models, cat. 3, available on request
• Complete protection against electrical damages
• Standard and long distance models

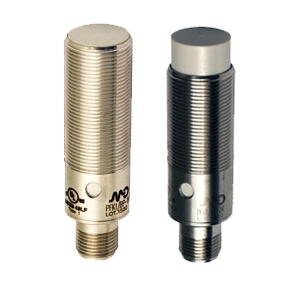

M18 - HIGH-PERFORMANCE
PFK

Designed for washdown applications

• AISI 316L (DIN 1.4404) stainless steel housing
• LED status indicator
• IP67 – IP68 – IP69K protection degree
• ATEX models, cat. 3, available on request
• Complete protection against electrical damages
• Standard and long distance models
