Stationary 1D / 2D code readers

Camera-based bar code readers for stationary use: These code readers reliably capture 1D- and 2D-codes; depending on the type, printed or directly marked, omnidirectional, static or in fast motion as well as inverse or mirrored codes. Various version are available with respect to size, protection classes IP 67 or 69K, speed or interfaces.

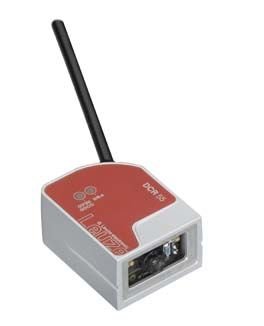

Miniature scanner

Identification of 1D- and 2D-codes
Compact design for constrained spaces
Flexible connection by means of USB or RS232

Compact scanner

Fast identification of 1D- and 2D-codes
Identification of moving codes
Large reading range reduces the number of models

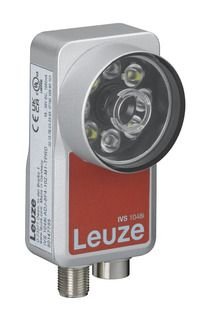

Simple Vision sensor

Identification of 1D-/2D-codes with one image processing sensor
Enhanced reading algorithm specially for DPM codes
Simultaneous reading of multiple 1D and 2D-codes (multicode decoding)
Exchangeable lenses for flexibility in terms of distance, field of view and resolution
Integrated interfaces: I/O, TCP/IP, PROFINET, FTP or SFTP

Stationary 1D/2D code readers
Camera-based bar code readers for stationary use: These code readers reliably capture 1D- and 2D-codes; depending on the type, printed or directly marked, omnidirectional, static or in fast motion as well as inverse or mirrored codes. Various version are available with respect to size, protection classes IP 67 or 69K, speed or interfaces.

Advantages for you

Easy and fast commissioning
A wizard integrated in the WebConfig tool guides you quickly and easily through the setup process and simplifies commissioning. For simple applications, the DCR 200i can also be set up for the reading task without a PC using just two buttons on the device
Codes can be read on various materials
Interfering reflections can be reduced thanks to exchangeable polarization filters and diffusor foils
Detection, even at high object speeds
High reading performance and powerful LED illumination enable a good reading result even at high object speeds or partially damaged codes.
Attractively priced thanks to modular set-up
Thanks to the modular design, the DCR 200i is exactly adapted to the requirements of your application with respect to function range and power.

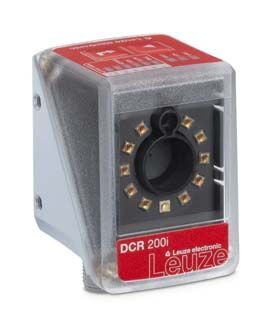

Highlight: DCR 200i dual code reader
Seamless traceability of your products from production to the customer is getting increasingly more important. Whether for allergen management with food products, placement inspections in the pharmaceutical industry, shipping label monitoring in the packaging sector or testing of the product quality in the electronics industry – the fast and reliable identification of 1D- and 2D-codes is essential.

The DCR 200i dual code reader combines simple handling with high reading performance – even with demanding reading tasks – and thereby provides support with:

Identification - ensuring that the label was printed with product/bar code and/or Data Matrix code
Track and trace - traceability of ingredients and packed products during production.

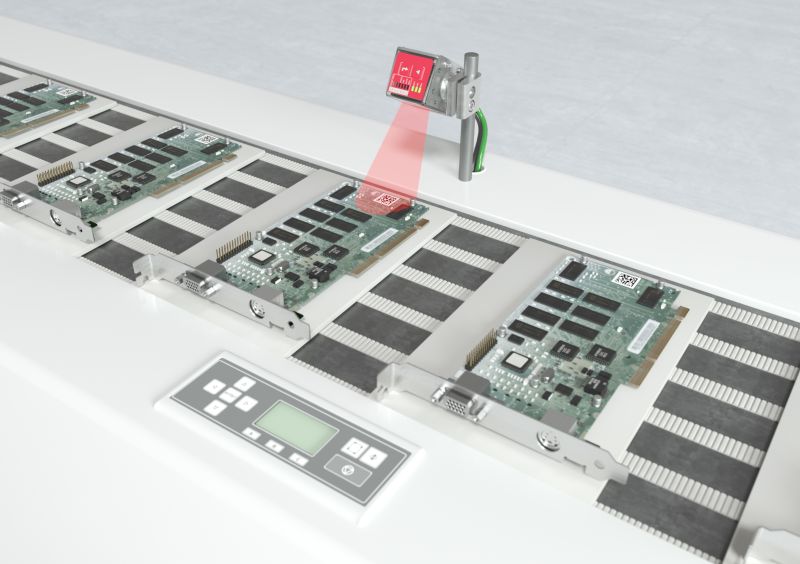

Code reading in the production area
Requirement:
In final assembly, codes are used for the traceability of individual components. These must be read on a conveyor line that – at times – moves at high speeds.

Solution:
Thanks to their high scanning rate, the DCR 200i 1D-/2D-code readers enable the reading of codes on quickly moving objects. In addition, optics models are available for various reading ranges.
