Safety locking devices

Safety switches with locking device keep doors locked and thus prevent unauthorized entry or access, thereby protecting persons and processes. The L series features a wide range of variants for different application cases, from devices with mechanical actuators to devices with an RFID‑coded actuator for maximum manipulation protection as well as integrated command buttons. With their robust design, all devices are designed for rough industrial applications.

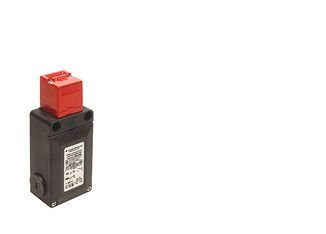

L100
  • Type 2 interlock device with guard interlocking
  • Actuation through mechanical tongue
  • Locking force 1,100 N

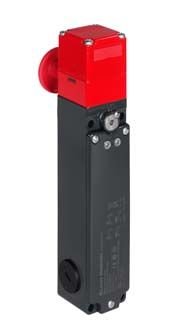

L200
  • Type 2 interlock device with guard interlocking
  • Actuation through mechanical tongue
  • Locking force 2,800 N
  • Optional escape unlocking

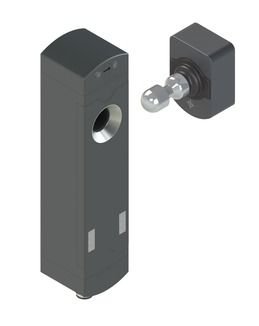

L250
  • Type 4 interlock device with guard interlocking
  • RFID encoded actuator
  • Locking force 2,100 N
  • OSSD switching outputs
  • Optional escape unlocking

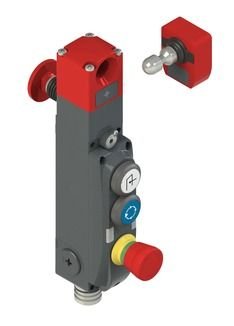

L300
  • Type 4 interlock device with guard interlocking
  • RFID encoded actuator
  • Locking force 9,750 N
  • OSSD switching outputs
  • Optional command buttons, optional escape unlocking

Safety locking devices L100, L200, L250, L300
Safety switches with locking device keep doors locked and thus prevent unauthorized entry or access, thereby protecting persons and processes. The L series features a wide range of variants for different application cases, from devices with mechanical actuators to devices with an RFID‑coded actuator for maximum manipulation protection as well as integrated command buttons. With their robust design, all devices are designed for rough industrial applications.

Advantages for you
  • Secure locking: With a locking force of up to 9,750 N, doors remain securely locked even under extreme loads
  • Manipulation protection: The RFID‑coded actuators offer optimum protection against manipulation. Special installation measures are not necessary.
  • Fully guarded: Integrated command buttons and emergency stop as well as the matching door handle enable complete safety functions to be easily implemented at safety doors
