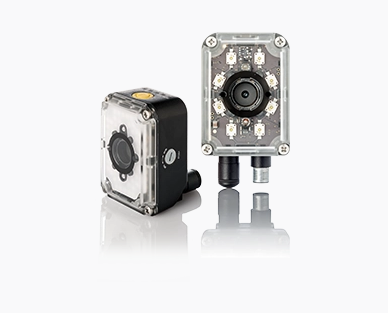

P1X

Ultra-compact cost effective smart camera offering advanced vision system functionalities in a fully embedded standalone device. The P1x Series is available with monochrome or color image sensors in two different resolutions: VGA and 1.3 MP.

• Imagers: VGA and 1.3 MP, CMOS mono or color
• Lens options: 6, 9, 12, 16, 25mm focal lengths
• Illuminators: Red, Blue, Infrared, White (polarized versions available)
• Digital I/Os: 2 IN / 3 OUT
• Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
• Rotating connectors for straight vs 90° mounting
• IP67 rated housing
• Configuration through IMPACT Software

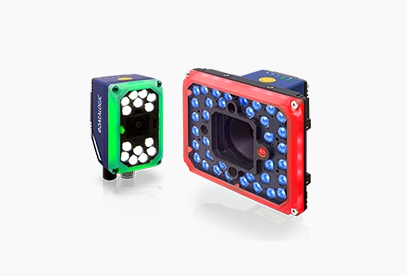

P2X

Industrial smart camera providing exceptional inspection performance in a compact housing. State-of-the-art CMOS imagers with resolutions up to 2 MP deliver maximum image quality.

• Imagers: WVGA and 2MP, CMOS mono or color
• Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
• Illuminators: Red, Blue, Infrared, White (polarized versions available)
• Digital I/Os: 2 IN / 3 OUT
• Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
• Rotating connectors for straight vs 90° mounting
• IP67 rated housing
• Configuration through IMPACT Software including advanced algorithms
