Product Attributes
Model No.: KS06
Brand: SDKELI
Function Type: Infrared Range and Communication System
Material: Metal
IP Rating: IP65
Certification: CE
Customized: Customized
Response Time: ≤10ms
Resolution/Detection Capability: 14mm, 20mm, 30mm, 40mm
Operating Range: 0~3m，0~6m, 2~9m（customeried）
Output Type: PNP Or NPN
Safety Standard: Type 4
Applicable Standards: GB/T19436.1; GB/T 19436.2; GB4584-2007

Product Description

Product introduction

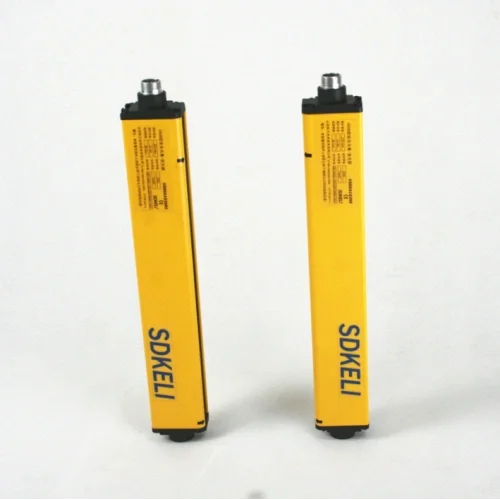

The KS06 Safety Light curtains are electro sensitive devices using one or more light beams, emitted by an Emitter and received by a Receiver, to create an intangible controlled area. Safety type - Defines the self-monitoring and safety principles contained in the device; it must be chosen as a function of the risk level characterising the machine.

KS06 AOPD can effectively detect all opaque objects in the light curtain area that exceed the detection accuracy. It is applicable to the safety protection for mechanical presses, hydraulic machines, shears, bending machines and other dangerous places. Site application
