Multiple light beam safety devices
The multiple light beam safety devices of the MLD 300 (type 2) and MLD 500 (type 4) series are used for access guarding at machines and systems. The devices are available as 2-, 3- and 4-beam transmitter-receiver systems for large operating ranges up to 70 m and as cost-efficient 2- and 3-beam transceiver systems for operating ranges up to 8 m.
MLD 500
- Type 4 / PL e transmitter-receiver systems for large operating ranges up to 70 m
- 2-, 3- and 4-beam versions
MLD 500 transceiver
- Type 4 / PL e transceiver systems for operating ranges up to 8 m
- Cost-effective and easy to install: active transmitter / receiver and passive deflecting mirror without electrical connection
- 2- and 3-beam versions
MLD 300
- Type 2 / PL c transmitter-receiver systems for large operating ranges up to 70 m
- 2-, 3- and 4-beam versions
MLD 300 transceiver
- Type 2 / PL c transceiver systems for operating ranges up to 8 m
- Cost-effective and easy to install: active transmitter / receiver and passive deflecting mirror without electrical connection
- 2- and 3-beam versions
MLDSET
- Complete muting systems consisting of MLD 500 pre-mounted in device column, muting sensors with mounting brackets and sensor connection module
MLD-UDC
- MLD 500 pre-mounted in device column
Economical access guarding
Advantages for you
- With 2, 3 and 4‑beam versions and operating ranges up to 70 m, the MLD family always offers the right solution
- Together with the UMC mirror columns, multi‑sided safeguarding is easy to implement
- The integrated muting functions ensure easy setup of access guarding on conveyor lines
- Practical swivel mounts and clamp brackets for quick installation and alignment
Highlights
Efficient solutions for any operating range
The transceiver systems consist of an active transmitter/receiver and a passive deflecting mirror without electrical connection. This allows cost‑effective solutions with low installation effort.
The transmitter-receiver systems consist of a separate transmitter and receiver for applications with large operating ranges up to 70 meters. Deflecting mirrors can be added for multi‑sided safeguarding.
The transceiver systems consist of an active transmitter/receiver and a passive deflecting mirror without electrical connection. This allows cost‑effective solutions with low installation effort.
The transmitter-receiver systems consist of a separate transmitter and receiver for applications with large operating ranges up to 70 meters. Deflecting mirrors can be added for multi‑sided safeguarding.
Simple and error-free configuration
All settings on the device can be configured by means of pin assignment. This saves time and money when commissioning and ensures error‑free configuration. A device can be swapped out easily by means of plug-and-play without reconfiguration.
All settings on the device can be configured by means of pin assignment. This saves time and money when commissioning and ensures error‑free configuration. A device can be swapped out easily by means of plug-and-play without reconfiguration.
Quick and easy alignment
The practical swivel mounts and clamp brackets make the MLD easy to align. Thanks to the integrated laser alignment aid, alignment can be performed quickly and easily even over large distances and with multi‑sided safeguarding.
The practical swivel mounts and clamp brackets make the MLD easy to align. Thanks to the integrated laser alignment aid, alignment can be performed quickly and easily even over large distances and with multi‑sided safeguarding.

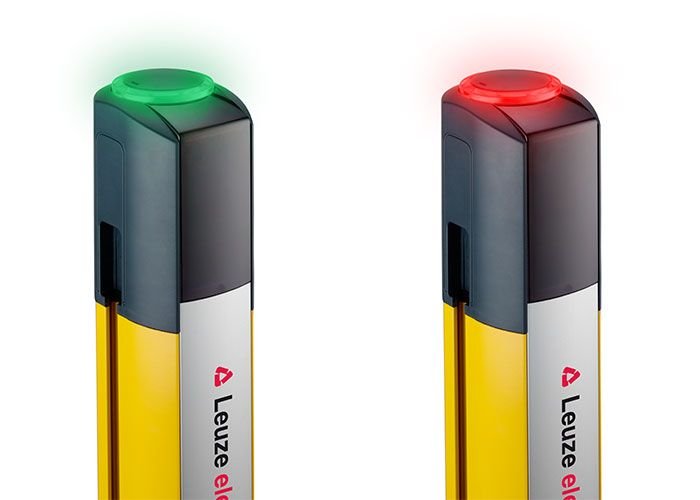

Clearly visible status
The integrated, multi‑color indicator lights clearly show the status of the OSSD outputs at all times. Reset requests are also indicated if required.
The integrated, multi‑color indicator lights clearly show the status of the OSSD outputs at all times. Reset requests are also indicated if required.
Free-standing mounting
The DC and UDC device columns enable easy, freestanding mounting of the MLD multiple light beam safety devices. Special mounting brackets ensure simple installation and fast alignment of the devices.
The UMC mirror columns ensure simple and reliable set-up of multi-sided access guarding.
The spring elements in the foot of the columns absorb mechanical impacts and reset the columns automatically into their initial position. Alignment or repair work is unnecessary.
The DC and UDC device columns enable easy, freestanding mounting of the MLD multiple light beam safety devices. Special mounting brackets ensure simple installation and fast alignment of the devices.
The UMC mirror columns ensure simple and reliable set-up of multi-sided access guarding.
The spring elements in the foot of the columns absorb mechanical impacts and reset the columns automatically into their initial position. Alignment or repair work is unnecessary.
