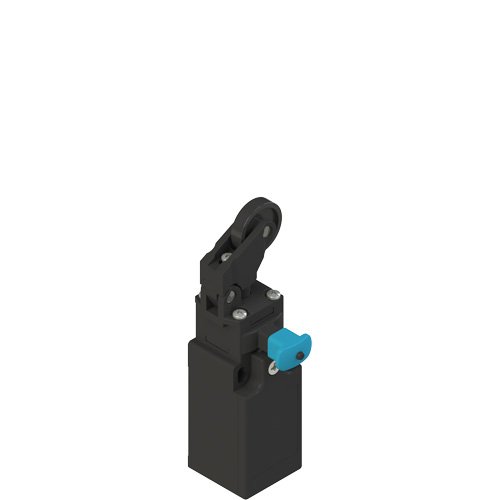

FR 2007-W3M2
Position switch with adjustable one-way roller and reset device
General features

Housing:Technopolymer housing, one threaded M20x1,5 conduit entry (FR series)
Contact block:1NO+2NC slow action (B20)
Head:With reset device and adjustable one-way roller
Protection degree:IP67 according to EN 60529
Positive opening:Yes

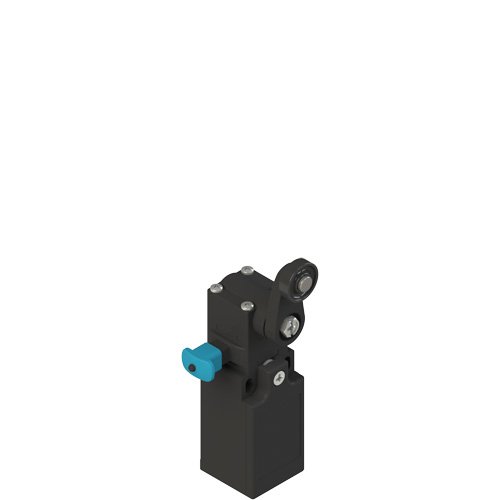

FR 2030-W3M2
Position switch with roller lever and reset device
General features

Housing:Technopolymer housing, one threaded M20x1,5 conduit entry (FR series)
Contact block:1NO+2NC slow action (B20)
Head:With reset device, for rotating levers
Actuator:With technopolymer roller lever, 18 mm diameter
Protection degree:IP67 according to EN 60529
Positive opening:Yes

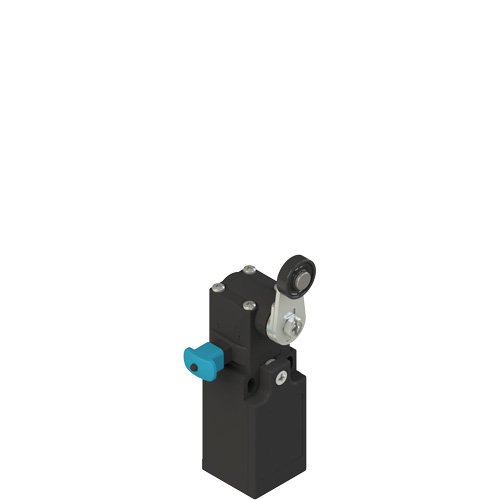

FR 2031-W3M2
Position switch with roller lever and reset device
General features

Housing:Technopolymer housing, one threaded M20x1,5 conduit entry (FR series)
Contact block:1NO+2NC slow action (B20)
Head:With reset device, for rotating levers
Actuator:With rotating technopolymer roller lever, 18 mm diameter
Protection degree:IP67 according to EN 60529
Positive opening:Yes

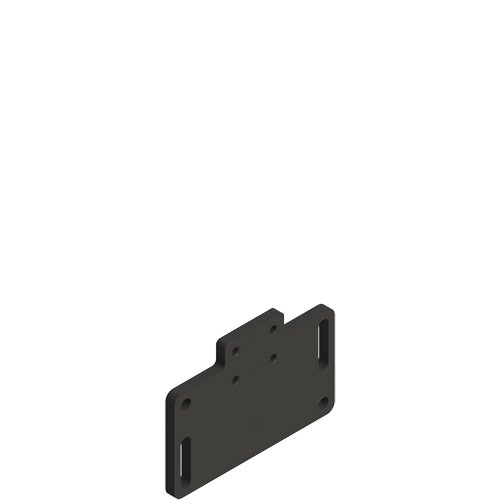

VF SFP1
Fixing plate P1 for FR switches (complete with screws)

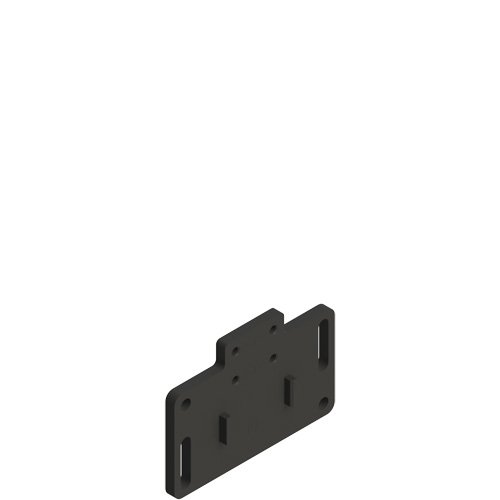

VF SFP3
Fixing plate P3 for FX switches (complete with screws)

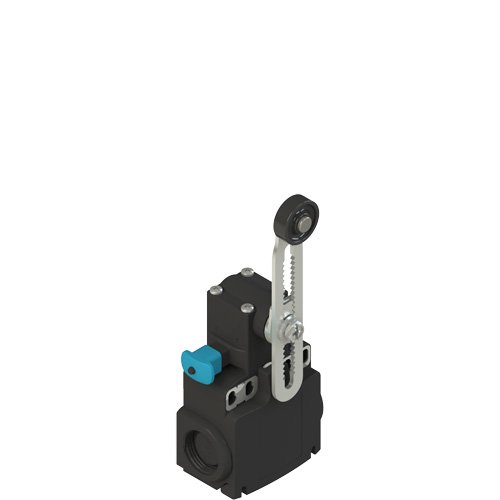

FX 2056-W3M2
Position switch with adjustable roller lever and reset device
General features

Housing:Technopolymer housing, two threaded M20x1,5 conduit entries (FX series)
Contact block:1NO+2NC slow action (B20)
Head:With reset device, for rotating levers
Actuator:With adjustable technopolymer roller and notching lever, 20 mm diameter
Protection degree:IP67 according to EN 60529
Positive opening:Yes
