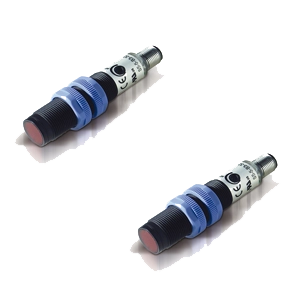

Photoelectric Sensor

TUBULAR - IP69K - M18
S5

The S5 series offers a range of plastic tubular M18 photoelectric sensors. The most varied optic functions can be chosen amongst the fixed focus or diffuse proximity models with short, medium or long operating distances reaching 60 cm; the 4 m retroreflex, 3 m polarised retroreflex and 1 m for detection of transparent materials; the 12 m through beam and models with fibre-optic connection. Different versions with either axial or radial optics are available. The series offers connector or cable connection, 3 wire Vac versions or 4 wire Vdc versions with complete configuration of the NPN/ PNP output and dark/light mode. A red LED indicating the output status is visible on the bottom side of the sensor. The versions with trimmer adjustment present also a green LED signalling the switching stability according to the received signal’s intensity. The rugged ABS housing alway

Wide versatility of optic functions and connections
High operating distances for all functions
Models with trimmer adjustment and stability LED
Rugged and impermeable plastic housing

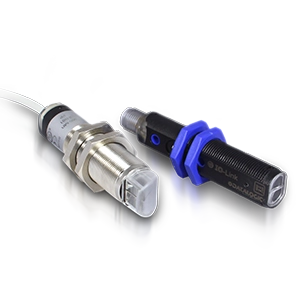

TUBULAR - IP69K - M18
S5N

The first tubular sensor line with all optic functions and IO-Link V1.1 smart sensor profile on the market, a reference point for the Industry 4.0. Stainless steel AISI 316 L IP69K ECOLAB and Diversey models (S5N...NA...) are also available.

Diffuse proximity up to 700 mm
Background suppression up to 150 mm
Contrast sensor 10 mm ±2 mm
All the optic functions are available
Robust EMI immunity
Improved ambient light immunity
M18 flat plastic with universal mounting
Available in M18 metal housing
Axial or radial optics, cable or connector
IO-Link V1.1 COM 2 Smart sensor profile
INOX AISI 316 L models are available
S5N...NA compliant with Ecolab and Diversy

TUBULAR - M12

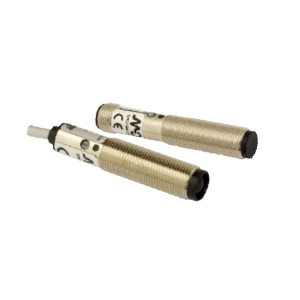

DM

M12 Photoelectric Sensors with different models with Teach-in button for easy adjustment.

Red and infrared emission
Diffuse up to 300 mm
Polarized 2.5 m
Through-beam 4 m
PNP or NPN output with remote Teach-in
Cable 2 m or M12 plug connection
4 wires selectable NO/NC output
M12 metallic housing

TUBULAR - M18

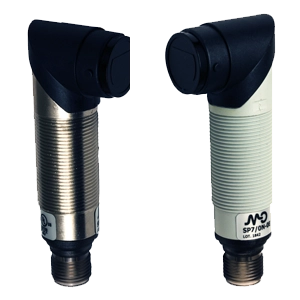

SS-SP

Wide range of models of M18, photoelectric sensors: general porpouse with all optical function

Models with or without adjustment on axial and right angle optic
LO/DO selectable output
ATEX models, cat. 3, available on request
LED status indicator for all versions
IP67 protection degree for all models

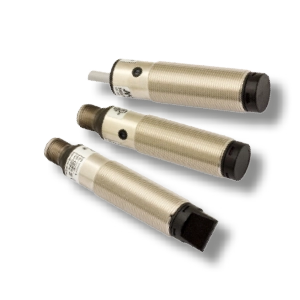

TUBULAR - M18
FA

Wide range of models of M18, photoelectric sensors , diffuse models up 1.5 m, polarized 4.5 m, backgrouns suppression up 250 mm, through-beam up 20 m, for transparent objects.

Complete range of M18 sensors with 10...30 Vdc power supply
Axial and radial optic with flat surface
Retro-reflective models for transparent objects detection, with red emission
IP67 protection degree
Metallic or plastic housing
Sensitivity adjustment available for all models

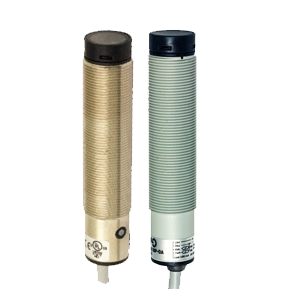

TUBULAR - M18
FAL

M18 photoelectric sensors with different models with teach-in button and laser emission.

Axial and right optic with flat surface
Visible red laser emission (laser class 1)
High operative distance
IP67 protection degree
Metallic or plastic housing
Sensitivity adjustment by teach -in button
Total protection against any type of electric damages

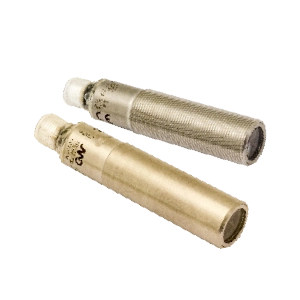

TUBULAR - M18
FF + FFRS

Wide range of models of M18, photoelectric sensors: for harsh and washdown enviroments, ECOLAB and DIVERSY tested.

Red, infrared emission
Adjustment with Innovative inductive teach-in function through sensors’s housing (FF)
Diffuse up to 800 mm
Polarized up 4.5 m
Through-beam up 20 m
For transparent objects up 1.5 m
Background Suppression up to 130 mm)
AISI316L Stainless steel housing
Protection degree IP68, IP69K
Ecolab and Diversey certification
M18 or smooth housing

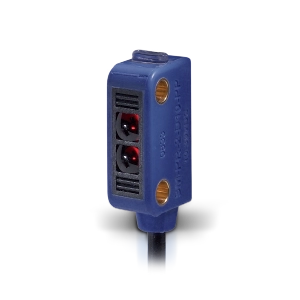

SUB-MINIATURE
SMALL

The subminiature photoelectric sensor with all universal optic functions Precise and effective detection also for hard application to reach objects in compact machineries with narrow spaces.

Fixed focus proximity 15, 20, 30, 50 cm
1.5 m retroflective and 1 m polarized retroflective
2 m through beam models
Amplified NPN or PNP output with NO-NC output
4 wires connection with 2 m Cable
IP67 Plastic subminiature case

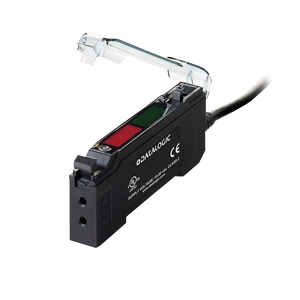

FIBER OPTIC
S70

The compact and advanced fiber optic amplifier sensors with competitive price and features, double display, high speed and contrast sensitivity models are also available including IO-Link connectivity.

Diffuse fiber optics up to 500 mm
Through beam fiber optics up to 1800 mm
Red or White LED emission for contrast detection
Double 4-digit display
10 bits (1024 points) or 12 bits (4096 points) resolution
Switching Freq. 1kHz, Fast 5 kHz, Ultra-fast 10 kHz and 50 kHz
NPN or PNP output with 2 m cable or M8 connector
Configurable timing function for turn-ON/OFF delay
IP67 plastic case, fiber glass reinforced
Wide range of optical fibers

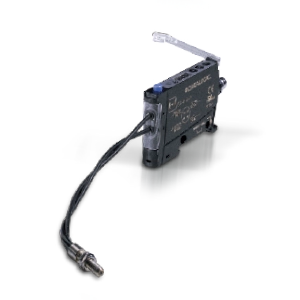

FIBER OPTIC
S7

Red or White LED emission for contrast detection
4-digit display and Teach-in or trimmer setting
10 bits (1024 points) or 12 bits (4096 points) resolution
Switching Freq. 1kHz, Fast 5 kHz, Ultra-fast 10 kHz and 50 kHz
NPN or PNP output with 2 m cable or M8 connector
Configurable timing function for turn-ON/OFF delay
IP67 plastic case, fiber glass reinforced
Wide range of optical fibers

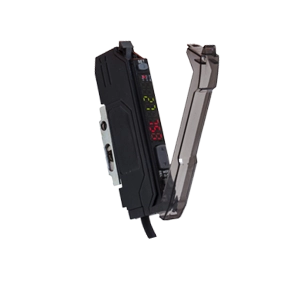

FIBER OPTIC
FY

The compact fiber optic amplifier sensors with competitive price and features, double display, high speed.

Red emission
Response time from 40µs to 16 ms
Four responce time select
Adjustment by teach-in button
Anti mutial interference function
NPN or PNP output with 2 m cable or pig-tail M8 connector
Configurable timing function ON/OFF delay

MINIATURE

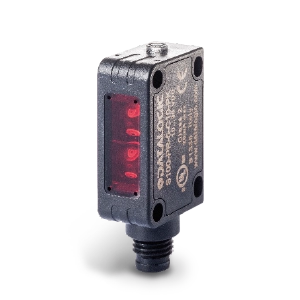

S100

Universal miniature photoelectric sensor with best price on the market, standard miniature dimension and universal mounting feature for quick and easy mechanical and electrical installation.

Through beam 12 m
Retroreflective 7 m
Polarized retroreflective 3 m and 5.5 m
Diffuse proximity 30 and 50 cm
Fixed focus 70 mm
Background suppression 100 mm and 200 mm
NPN or PNP output with L/D input
2 m cable or M8 connector version
IP67 plastic miniature case
M3 x 2 slotted holes on the back side
M3 threaded holes on the front side

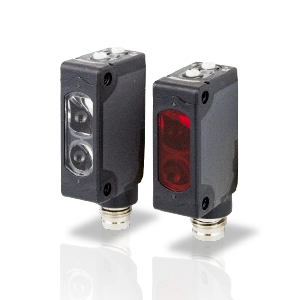

MINIATURE
S3Z

High performance in standardized miniature housing. Replaces larger sensors and fits in limited space in smaller machinery.

Diffuse proximity 15 or 70 cm
Background suppression Red LED or Laser 50-300 mm
Polarized RRX 4 m, Coaxial for Trasp. 2 m, Laser 10 m
Through-beam 15 m and Laser 30 m
3 wire connection with 2 m Cable or M8 connector
IP67 Plastic miniature case
M3 threaded holes on the front side

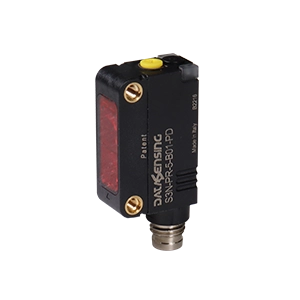

MINIATURE
S3N

Top performances in a very rugged and miniaturized standard housing.Complete solution for any detection application in any automation industry. Available with trimmer and Teach-in models with high connectivity features thanks to extended IO-Link communication.

All models with visible and bright red emission
LED and Laser emission models
All optic functions are also available with Teach-in
Multiple Background suppression functions
Shiny and clear object detection
Single, Double trimmer & Push Button models
Diffuse proximity up to 100 cm
Background suppression up to 300 mm (LED trimmer version)
Polarized RRX 5 m
Coaxial for transparent 2 m, Laser 10 m
Through-beam 15 m and Laser 30 m
Connection with 2 m Cable or M8 connector
Rugged IP67 Plastic miniature case
M3 threaded holes on the front side with metal inserts
State of the art IO-Link connectivity with extended Smart Tasks

MINIATURE

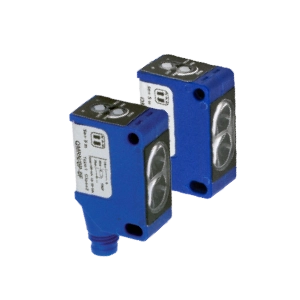

QM

Wide range of models of cubic miniaturized sensors.

Red and infrared emission
Background Suppression up 400 mm
Diffuse up to 1.5 m
For transparent objects up to 4 m
Through-beams up to 30 m
PNP and NPN -NO/NC output
2 m cable, M8 4 poles connectors and pig-tails M12 and M8

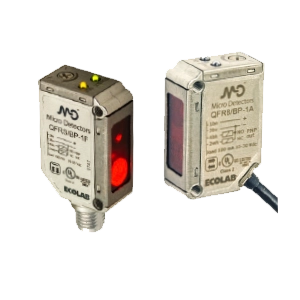

MINIATURE - IP69K
QF

Cubic miniaturized IP69K photoelectric sensors for harsh enviroments and washdown applications. ECOLAB tested.

Red and infrared emission
Diffuse up to 1 m
Background Suppression up to 200 mm
AISI316L Stainless steel housing
IP68, IP69K degree
4 wires PNP or NPN NO + NC output

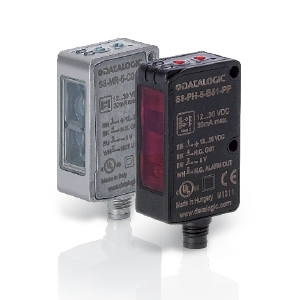

COMPACT - IP69K
S8

The Compact sensor format to solve difficult detection applications (i.e. target objects that are too small, too fast, too clear, too shiny). Performance oriented family available also with AISI 316L housing models.

Background suppression 50-300 mm, Laser 20-200 mm
Background suppression for transparent objects with reflective background
Polarized retroreflective 5 m, Laser 10 m, Coaxial for transparent objects 2 m
RGB Contrast sensor 6-12 mm, 25 kHz switch. freq.
UV Luminescence sensor 10-30 mm, 2 kHz switch. freq.
NO-NC outputs with 2 m Cable or M8 connector
IP67 Plastic case and IP69K stainless steel version (ECOLAB and DIVERSEY)
Compact dimensions (14 x 42 x 25 mm)
Stainless Steeel AISI 316 L models ATEX 3DG

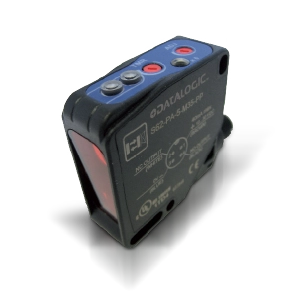

COMPACT - 50 X 50
S62

50 x 50 Standard universal sensor with improved performance and pricing. Wide range of optic functions in a compact industry format with stadard 50 x 50 mm housing, mounting holes, installation and wiring.

Diffuse proximity 90 or 200 cm, Laser 90 cm
Background suppression 30, 60, 120, 200 cm, Laser 15, 35 cm
Retroreflex 13 m, Polarized 8 m, Laser 20 m
Through beam 25 m
10-30 Vdc version with NO-NC, NPN or PNP output
Multivoltage 24-240 Vac/24-60 Vdc with Relay output
2 m cable or M12 rotatable connector

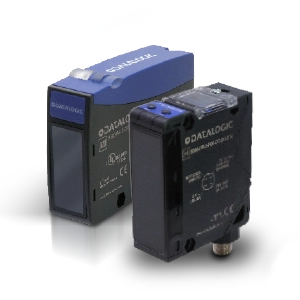

MAXI
S300

Heavy duty, multi-voltage sensors with terminal block and internal relay Durability for integration in outdoor applications and harsh environments.

Diffuse proximity 2 m (-PA), 5 m (-PR)
Background suppression 2 m (-PA), 2.5 m (-PR)
Polarized retroreflex 7 m (-PA), 22 m (-PR)
Through beam 50 m (-PA), 60 m (-PR)
10-30 Vdc version with NPN or PNP outputs
Multi-voltage with Relay output and terminal block
Configurable timing function for turn-ON/OFF delay
IP67 plastic case, fiber glass reinforced
I/O link connection
M3 x 4 slotted holes on the back side
M3 threaded holes on the front side

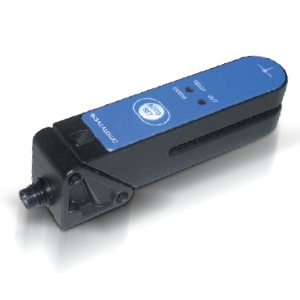

FORK
SR21

High-resolution, very fast response time fork sensor for precise positioning, applying and printing of labels, even when integrated in fast machinery and processes.

25 kHz high switching frequency
IR or red/green light models
Detection of labels (SR21-IR) or print register mark on transparent films (SR21-RG)
4 wire NPN and PNP output

FORK

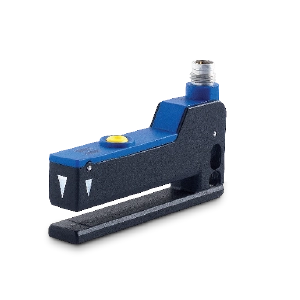

SR23

High-resolution, very fast response time fork sensor for precise positioning, applying and printing of labels, even when integrated in fast machinery and processes.

Multilayer labels detection
Up to 0,5 mm of minimum size labels/gap
5 mm slot width
50 mm slot depth
Dynamic or static setting through single push-button
12 kHz switching frequency
Compact and robust housing, IP65
M8 connector or 2 m cable models
PNP or NPN models

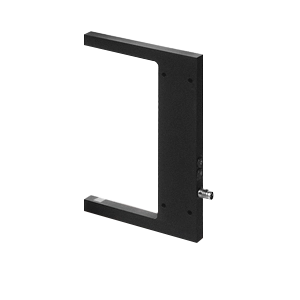

FORK
SRF

Optical slot sensors with high precision, for detection of objects, labels and trasparent film.

Red, infrared and laser emission
Wide range of models, width 2 mm up 180 mm and depth up 120 mm
Minimum object detection up 0.05 mm (laser)
Dynamic and static Teach-in via cable or by buttons
NPN or PNP output with M8-4 poles
NPN or PNP Lo/Do output with M8 3 poles

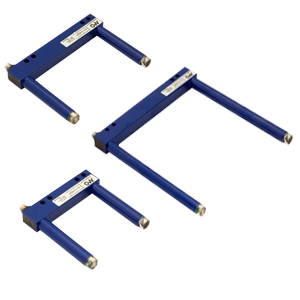

FORK
FC5

Optical slot sensors without adjustment for object detection.

Red emission
Plug and play, without adjustment
Wide range of models, width up 180 mm and depth up 120 mm
Minimum object detection up 0.8 mm
NPN or PNP Lo/Do output with M8 3 poles

FORK

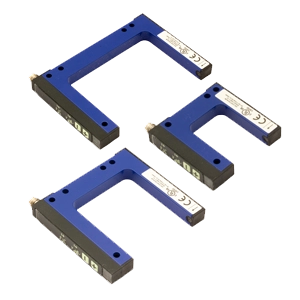

FC6

Optical slot sensors with high precision, for detection of objects, labels and trasparent film.

Infrared and laser emission
Wide range of models, width 2 mm up 120 mm and depth up 95 mm
Minimum object detection up 0.05 mm (laser)
Switching frequency 10 kHz
Dynamic and static Teach-in by buttons
NPN or PNP output with M8-4 poles

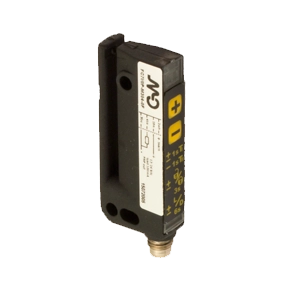

FORK
FC7

Optical slot sensor with high precision, for detection of opaque labels.

Red emission
Width 3mm and depth 42 mm
Minimum label detection up 2 mm with gap between two labels 2 mm
Dynamic and static Teach-in via cable or by buttons
Switching frequency 10 kHz
NPN or PNP output with M8-4 poles

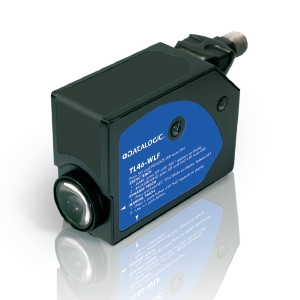

CONTRAST - COLOR
TL46

High resolution, White, Red or RGB emission, very fast response time Thanks to its new Low jitter models performs very precisely in packaging machinery and synchronization based mark detection, even when used in extremely fast processes.

Operating distance 6-12 mm (80 mm with acc. lens)
Bright light emission with Red, White, or RGB LED
Mark/Background automatic, manual and dynamic setting
Contrast / Color detection mode
Trimmer or Teach-in setting with 4 digit display version
Very fast switching frequency 15, 20, 25, 30 or 50 kHz
Very high precision model with less than 7 us jitter
Extended Smart functions and diagnostic with accelerometer models
Configurable NPN/PNP and 0-5 V analogue output
Standard metal case with IP67 protection and IP69K

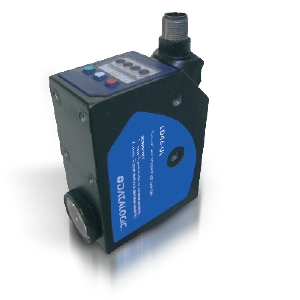

LUMINESCENCE
LD46

UV high power emission LED with high sensitivity Precise packaging machinery synchronization or material sorting and selection based on luminescent “invisible” mark detection.

High power UV light emission at 375 nm wavelength
Operating distance 10-20, 20-40, or 30-50 mm
Teach-in setting and manual threshold adjustment
5 segments bar graph for sensitivity level indication
Fast response time 250 μs and switching freq. 2 kHz
NPN and PNP outputs and and 0-5 V analogue output
Standard metal case with IP67 protection
Soiling indicator and Alarm Output
Sturdy metal Die-cast zinc IP67 housing

MICROMETRIC

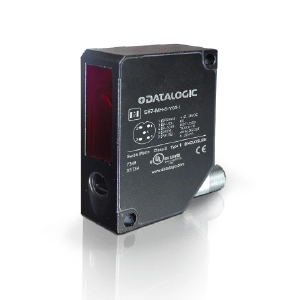

S67-Y

Class 2 laser distance sensor based on triangulation with a resolution of 10 um. S67-Y is available as long range (Y13) or Short range (Y03) with analog output.

Operating distance 50…300 mm (Y03)
Operating distance 100…600 mm (Y13)
Resolution of 10 um @ 50mm. distance on white 90% remission (Y03)
Response time less than 0.9 ms (Y03)
Linearity error of +/-0.03 mm @ 50 mm range (Y03)
Analog Voltage models with 0V-10V protected output
Analog Current models with 4-20 mA protected output
IP67 compact metal housing

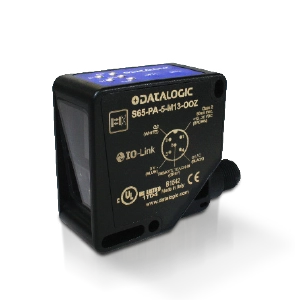

DISTANCE MEASUREMENT
S65-M

Cost effective Long Range Background Suppressor with Time Of Flight (TOF) technology and Infrared emission in a compact and standard 50 x 50 sturdy housing. Equipped by a powerful green pointer for easy target alignment.

Long Range background suppression detection up to 5 m
Cost effective solution for precise and reliable detection
Risk-free Infrared LED emission and embedded green LED pointer
Glossy and clear object surface detection model available
Two independent fully programmable outputs
NPN/PNP or IO-Link connection models
Rugged plastic housing in compact 50 x 50 x 24 mm format
Standard M12 8-poles connector

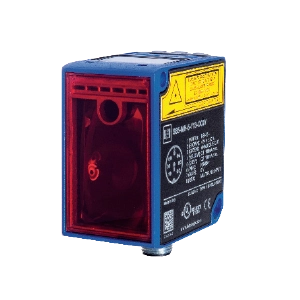

DISTANCE MEASUREMENT
S85

Long range distance sensor with Time Of Flight technology in diffuse mode. High resolution and accuracy available in two models up 10 m. and up to 20 m. Graphic display model available with Push button TEACH IN Adjustment in a compact sturdy metal housing.

Time Of Flight (TOF) sensor with Red Laser emission
Detection and measurement range up to 10 or 20 m
1 mm resolution/repeatability and 7 mm accuracy
4-20 mA or 0-10 V scalable analog output and 2 push-pull digital outputs
RS485 serial interface
Built-in graphic display and push buttons
PNP switching output and 0-10 V analog output

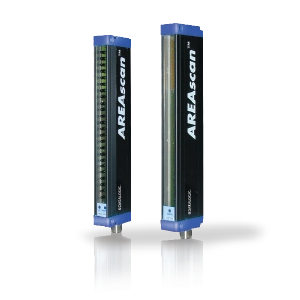

AREA
AS1

High resolution area sensor and measurement of small objects crossing the area, even in a random positions.

Crossed beam area sensors
100 mm controlled height
Adjustment trimmer
Optical or wire synchronism
Scan Mode input

AREA
DS1

High resolution area sensor and measurement of small objects crossing the area, even in a random positions.

4 mm resolution and 1 ms response time
100 to 300 mm controlled height
Operating distance up to 4 m
PNP digital and 0-10 V analog outputs
Adjustment trimmer

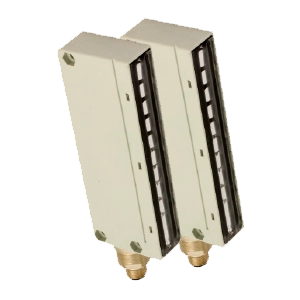

AREA - IP69K
BX04-BX10

Compact Area Sensors. Detection of small object in the controlled area, crossed beams.

IP67 protection degree (IP69K special model)
Complete protection against electrical damages
Detection of objects with irregular shape
Maximum distance 6 m
ATEX models, cat. 2 and cat. 3, available on request
LED indicators
Crossed beams detection

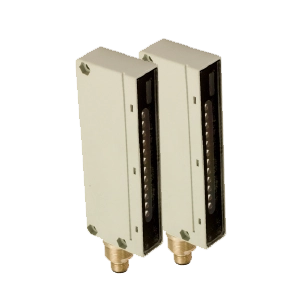

AREA - IP69K
BX80

Compact Area Sensors. Detection of small object in the controlled area, crossed beams.

Controlled height 70 mm
Operating distance up to 2.5 m
Sensitivity adjustment
IP67 protection degree (IP69K Versions with metallic enclosure for high-duty use and glass optical window
Syncronization by cable

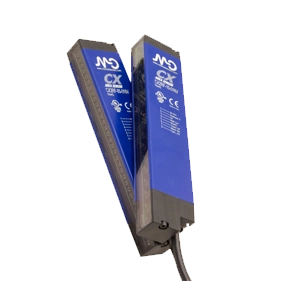

AREA
CX0

Slim area sensors, detection with total crossed beams.

Total crossbeam through all the optics
Crossed area 160 and 320 mm
Pitch 5 mm and 10 mm
Operating distance up to 3 m (for 5 mm pitch) and 6 m (for 10 mm pitch)
Teach-in adjustment: 2 levels
NO/NC configurable

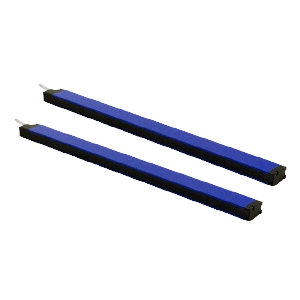

AREA
CX2

Slim Area Sensors, detection and measurement with crossed and parallel beams.

Parallel beams and floating crossbeams with variable amplitude
Synchronization by cable. Pitch 5, 10 and 20 mm
Control height up 480 mm (pitch 5 mm) and up 960 mm (pitch 10 mm and 20 mm)
Maximum operating distance up to 6 m (for 5mm pitch) and 6m (for 10 mm and 20 pitch)
Digital outputs NPN and PNP ; analogue current output (4…20 mA) and analogue voltage output (0..10V), mix outputs : digital PNP and analogue voltage output (0..10 V)
Adjustment by teach-in, 2 levels of adjustment
Blanking function . Available analogue versions TOP BEAM

AREA

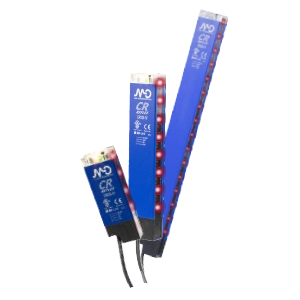

CR

Retroreflective Polarized Area Sensors.

Control heights from 70 mm to 310 mm
Sensing distance up to 4.5 m
Adjustment with Teach-in button
Optical pitch 10 mm
PNP and NPN outputs
Blanking function

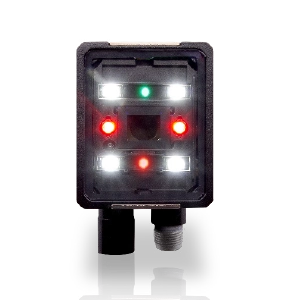

SMART SENSOR
SMART-VS

The smart vision sensor enabled with A.I. and empowered by machine learning assisted setting algorithms. Simply clever solution for all your presence and orientation object detection applications.

Machine Learning Assisted Setting
No vision Tools programming required
No need of skilled installers just photosensor like setting
Deterministic response time 50 ms
50...150 mm detection distance
TEACH Button and comprehensive UI with 5 status LEDs
50...150 mm operating distance with electronic focus control
Smart-VS Plus model available to handle more images and more connectivity features
