Modlink Heavy

Heavy Duty Connectors

We offer for every application a suitable connector
The heavy-duty plug connectors of the Modlink Heavy series from Murrelektronik guarantee secure transmission of signals, energy, data and pneumatics – even in the roughest of industrial environments. They consistently protect interfaces from water, coolants and lubricants, dirt and high mechanical loads.

Maximum Variety

Four different housing types, each in seven different sizes
Housing up to degree of protection IP68 – maximum tightness
Different fixed-pole and modular contact inserts for high flexibility
Worldwide use through country-specific approvals such as UL and CSA

A3 Hood, IP67

Single locking lever, top entry M20

Art.No.:70MH-GTANL-A01B100
Weight:0.063 kg
Country of origin: CZ

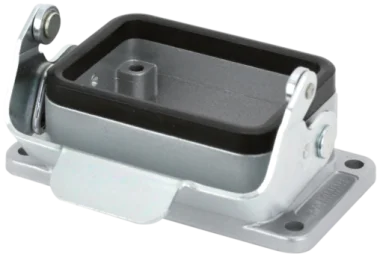

B6 Bulkhead mounted h., IP65

Single locking lever m.

Art.No.:70MH-GADNL-B000000
Alternative product:70MH-GADNL-B000010
Weight:0.23 kg
Country of origin: CZ

A3 Coupling h., IP65

Single locking lever m., top entry M20

Art.No.:70MH-GKANL-B01B000
Weight:0.1 kg
Country of origin:CZ

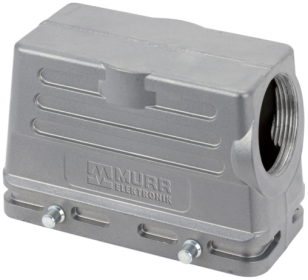

B16 Hood, low profile, IP65

Double locking lever, side entry M25

Art.No.:70MH-GTFNQ-A02C000
Alternative product: 70MH-GTFNQ-A02D000
Weight:0.17 kg
Country of origin: CZ

B24 female 24-pole, Push-in, 500 V, 16 A

Art.No.:70MH-EB024-GP03020
Alternative product:70MH-EB024-GC03020
Weight:0.122 kg
Country of origin: CN

A3 male 3-pole, screw t., 400 V, 10 A

Art.No.:70MH-ES003-AS02010
Alternative product: 70MH-ES004-AP02010
Weight:0.018 kg
Country of origin: CZ

B6 male 6-pole, Push-in, 500 V, 16 A

Art.No.:70MH-ES006-DP03020
Alternative product:70MH-ES006-DC03020
Weight:0.05 kg
Country of origin: CN

B16 male 16-pole, Push-in, 500 V, 16 A

Art.No.:70MH-ES016-FP03020
Alternative product:70MH-ES016-FC03020
Weight:0.083 kg
Country of origin: CN

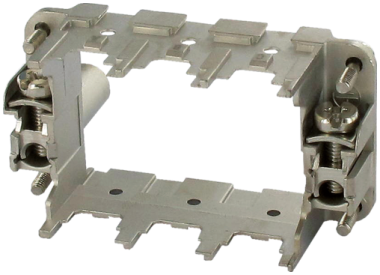

B10 frame (male) for 3 modules

A…C

Art.No.:70MH-RE03S-0000000
Alternative product:70MH-RF04S-0000000
Weight:0.06 kg
Country of origin: CZ

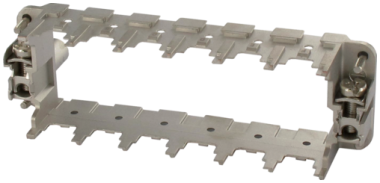

B24 frame (male) for 6 modules

A…F

Art.No.:70MH-RG06S-0000000
Alternative product:70MH-RF04S-0000000
Weight:0.08 kg
Country of origin: CZ

RJ45 module - female

Art.No.:70MH-MAM10-0000000
Weight:0.025 kg
Country of origin: PL

RJ45 module - male, field wireable

Art.No.:70MH-MAL10-0000000
Weight:0.015 kg
Country of origin: PL
